Industrial Electronics
Frequency Control Components for Industrial Systems
JWT industrial frequency control components include compact SMD crystals, 32.768kHz crystals and CMOS crystal oscillators for reliable timing in automation, control and measurement systems.
Industrial Application Areas
Product Selection
Recommended Products
SMD Crystals
| Picture | Model | Frequency | Dimension | Load Cap | Operating Temp | Frequency Tolerance | Datasheet |
|---|---|---|---|---|---|---|---|
 | CQ1210 | 26.000 to 96.000MHz | 1.2 x 1.0mm | Customized | -40°C to +85°C | ±10ppm | Download |
| CO1612 | 24.000 to 96.000MHz | 1.6 x 1.2mm | Customized | -40°C to +85°C | ±10ppm | Download |
| CN2016 | 12.000 to 96.000MHz | 2.0 x 1.6mm | Customized | -40°C to +85°C | ±10ppm | Download |
| CM2520 | 16.000 to 54.000MHz | 2.5 x 2.0mm | Customized | -40°C to +85°C | ±10ppm | Download |
| CF3225 | 8.000 to 54.000MHz | 3.2 x 2.5mm | Customized | -40°C to +85°C | ±10ppm | Download |
| CC5032 | 8.000 to 54.000MHz | 5.0 x 3.2mm | Customized | -40°C to +85°C | ±10ppm | Download |
32.768kHz Crystals
| Picture | Model | Frequency | Dimension | Load Cap | Operating Temp | Frequency Tolerance | Datasheet |
|---|---|---|---|---|---|---|---|
| DJ1610 | 32.768kHz | 1.6 x 1.0mm | Customized | -40°C to +85°C | ±20ppm | Download |
| DI2012 | 32.768kHz | 2.0 x 1.2mm | Customized | -40°C to +85°C | ±20ppm | Download |
| TF3215 | 32.768kHz | 3.2 x 1.5mm | Customized | -40°C to +85°C | ±20ppm | Download |
 | SMD7015 | 32.768kHz | 7.0 x 1.5mm | Customized | -40°C to +125°C -55°C to +125°C | ±20ppm | Download |
SMD Crystal Oscillators
| Picture | Model | Voltage | Frequency | Dimension | Operating Temp | Frequency Tolerance | Output | Datasheet |
|---|---|---|---|---|---|---|---|---|

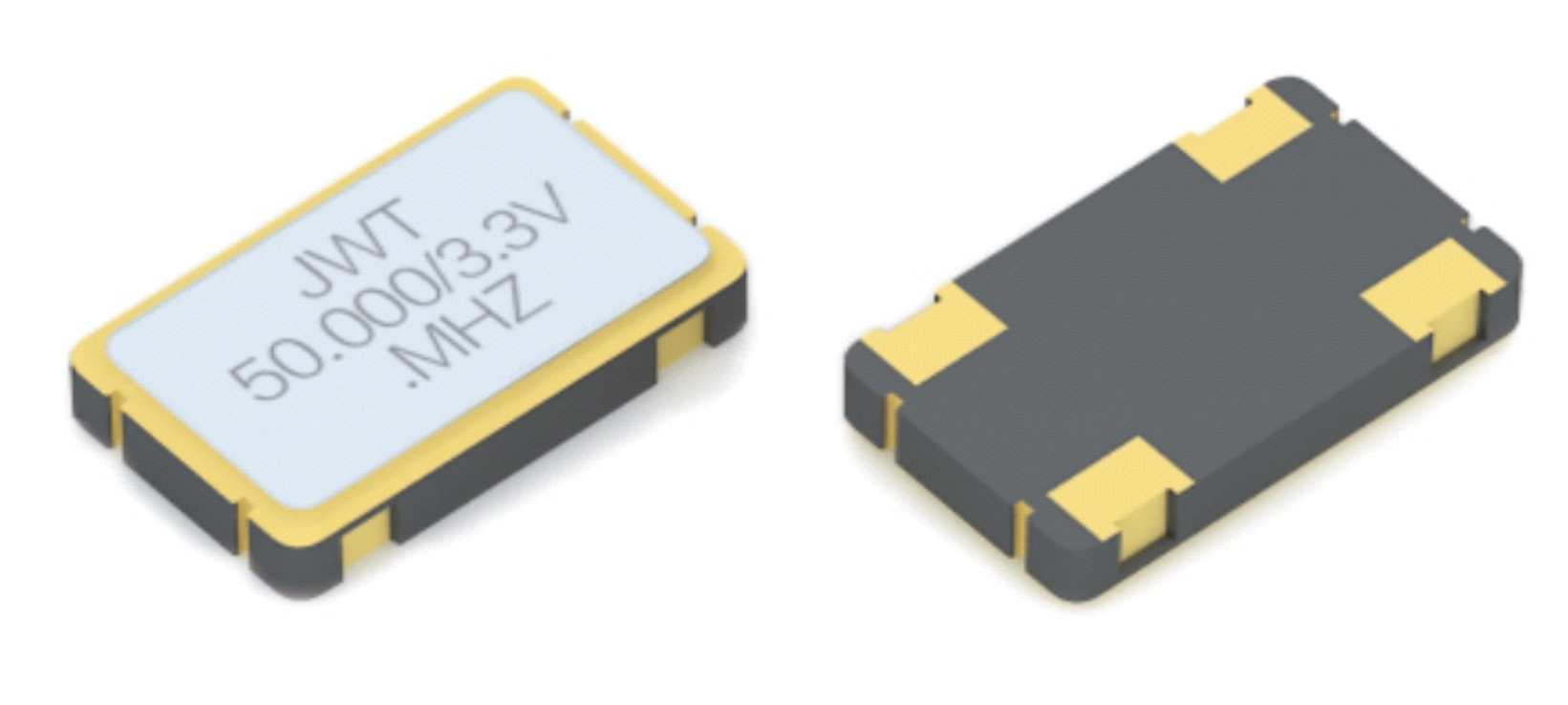

 | YN2016 | 0.9 to 2.0V 1.35 to 5.5V | 0.032768 to 54.000MHz | 2.0 x 1.6mm | -40°C to +85°C -40°C to +105°C | ±10ppm ±20ppm | CMOS | Download |
| YM2520 | 0.9 to 2.0V 1.35 to 5.5V | 0.032768 to 156.250MHz | 2.5 x 2.0mm | -40°C to +85°C -40°C to +105°C | ±10ppm ±20ppm | CMOS | Download |
| YF3225 | 0.9 to 2.0V 1.35 to 5.5V | 0.032768 to 156.250MHz | 3.2 x 2.5mm | -40°C to +85°C -40°C to +105°C | ±10ppm ±20ppm | CMOS | Download |
| YC5032 | 0.9 to 2.0V 1.35 to 5.5V | 0.032768 to 156.250MHz | 5.0 x 3.2mm | -40°C to +85°C -40°C to +105°C | ±10ppm ±20ppm | CMOS | Download |
| YA7050 | 0.9 to 2.0V 1.35 to 5.5V | 0.032768 to 156.250MHz | 7.0 x 5.0mm | -40°C to +85°C -40°C to +105°C | ±10ppm ±20ppm | CMOS | Download |
Product Support
Why JWT for Industrial Electronics
The selected industrial product range covers compact SMD crystals, 32.768kHz timing crystals and CMOS oscillators in practical package sizes and operating-temperature options. Use the tables above to compare the documented specifications and download the corresponding datasheets.
Industry Requirements & Selection Guide
What timing requirements matter in Industrial Electronics?
Industrial systems commonly require stable timing across the specified temperature range, suitable package robustness and predictable long-term operation.
How should engineers select a frequency-control component for Industrial Electronics?
Start with frequency and temperature range, then compare tolerance or stability, package size, load conditions and the electrical interface documented in each datasheet.
Request a Quote
Discuss frequency, package and operating-temperature requirements with the JWT team.
