CN Series

CN2016 2.0 × 1.6 mm SMD Crystal

CN2016 is a 2.0 × 1.6 mm SMD crystal with high precision, stability and consistency. The datasheet specifies 16.000-96.000 MHz fundamental (AT-cut) operation.

Quick Product Answers

What is CN2016?
CN2016 is a 2.0 × 1.6 mm SMD crystal with high precision, stability and consistency. The datasheet specifies 16.000-96.000 MHz fundamental (AT-cut) operation.

What are the key specifications of CN2016?
Nominal frequency range: 16.000-96.000 MHz; Operating temperature range: -20°C to +70°C / -40°C to +85°C / -40°C to +125°C.

What applications is CN2016 intended for?
CN2016 is listed for Network communication, Intelligent healthcare, Intelligent wearing, Smart home, Smart phones.

How should engineers select CN2016?
Select CN2016 only when its documented frequency, package size, operating-temperature range and tolerance or stability match the design. Where applicable, also verify load capacitance, supply voltage and output waveform in the datasheet.

Model: CN2016
Package size: 2.0 × 1.6 mm
Frequency range: 16.000-96.000 MHz
Oscillation mode: Fundamental (AT-cut)
Frequency tolerance: ±10 ppm
Operating temperature: -20°C to +70°C / -40°C to +85°C / -40°C to +125°C

Download Datasheet Request a Sample

Product Features

High precision, stability and consistencyProduct feature stated in the original datasheet.

Ultra miniaturizationProduct feature stated in the original datasheet.

ROHS/REACH CompliantProduct feature stated in the original datasheet.

Wide operating temperatureProduct feature stated in the original datasheet.

Applications

01Network communication

02Intelligent healthcare

03Intelligent wearing

04Smart home

05Smart phones

06PC Digital

Technical Specifications

CN2016 electrical and environmental specifications
Model	CN2016
Nominal frequency range	16.000-96.000 MHz
Oscillation mode	Fundamental (AT-cut)
Frequency tolerance at 25°C ±3°C	±10 ppm
Operating temperature range	-20°C to +70°C / -40°C to +85°C / -40°C to +125°C
Frequency stability over temperature (Ref. to 25°C)	±10 ppm / ±20 ppm / ±30 ppm
Storage temperature range	-55°C to +125°C
Load capacitance	Customized
Shunt capacitance max.	3.0 pF
Drive level max.	200 µW
Aging at first year	±3.0 ppm

Equivalent Series Resistance

16.000-19.999 MHz150-80 Ω

20.000-29.999 MHz80-60 Ω

30.000-53.999 MHz60-40 Ω

54.000-96.000 MHz40-25 Ω

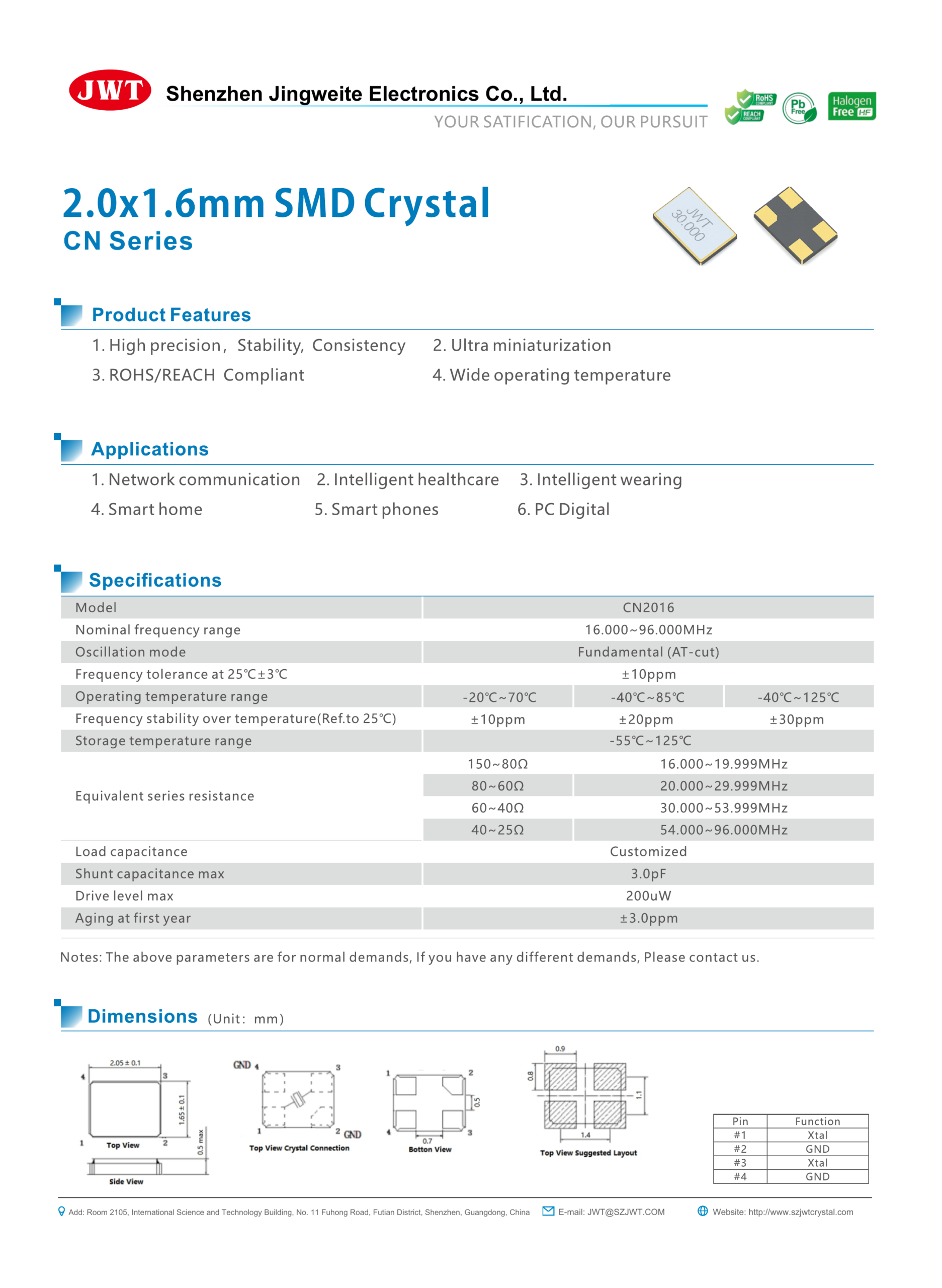

Original PDF Specification Preview
