SMD CRYSTAL

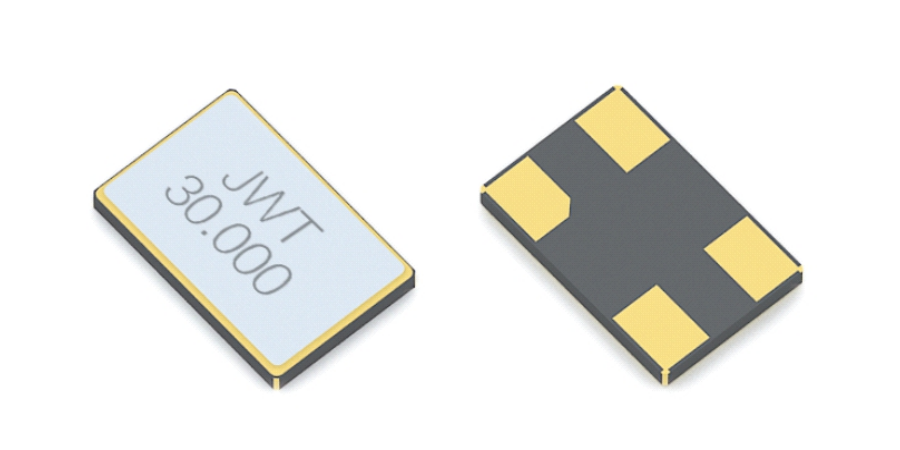

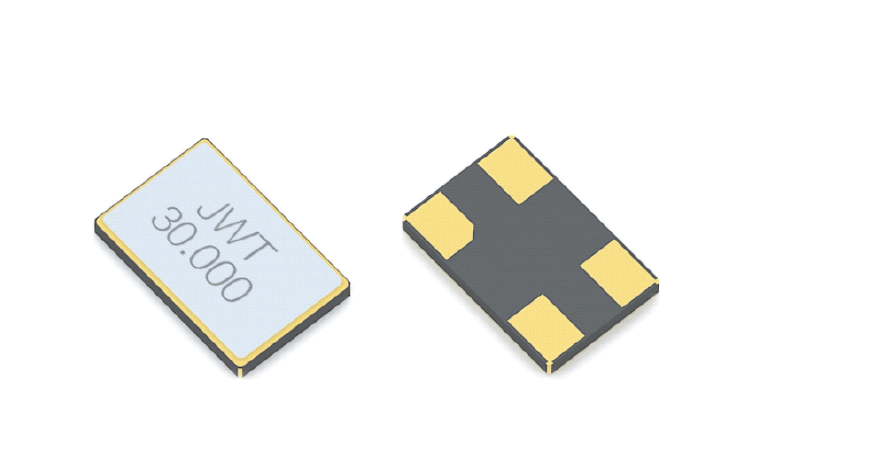

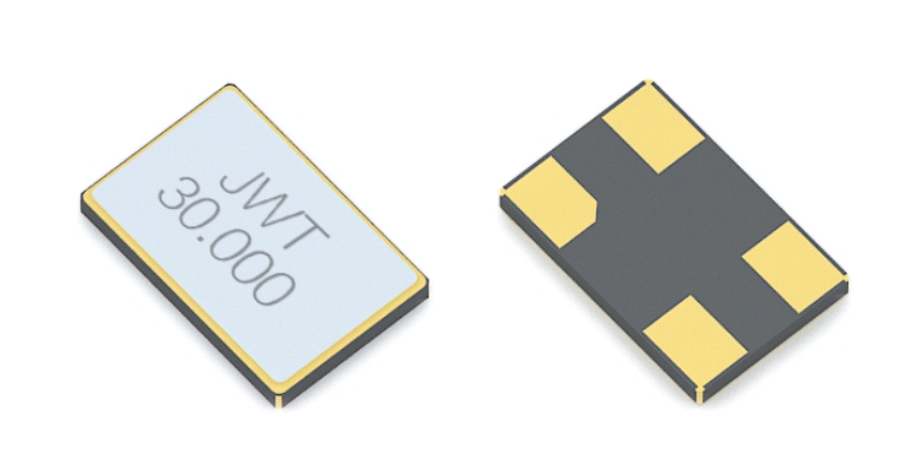

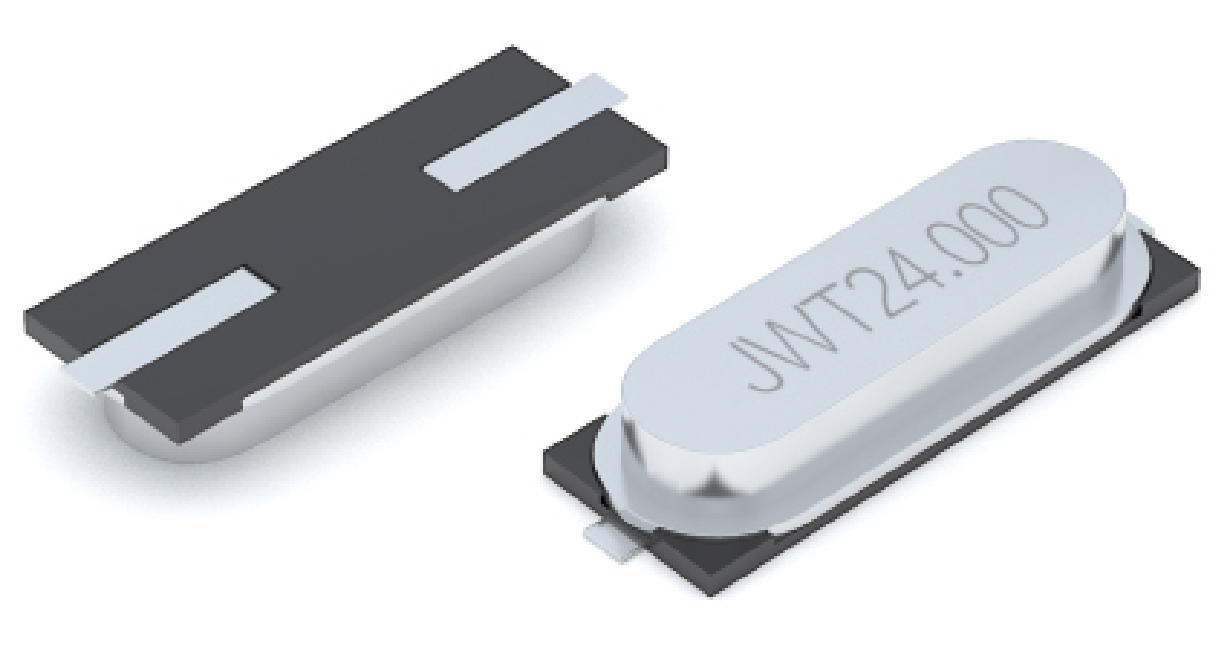

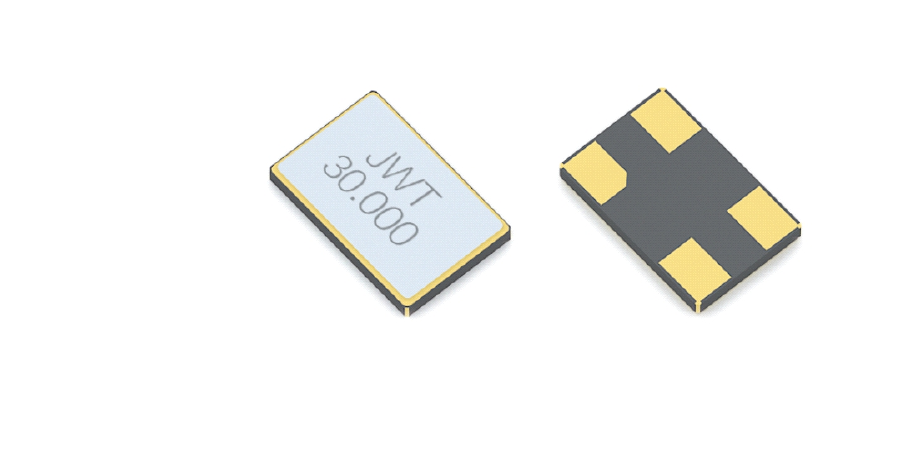

JWT Crystal's SMD Quartz Crystal Resonators are passive frequency-control components for surface-mount technology (SMT). The current range includes 1.2 x 1.0 mm, 1.6 x 1.2 mm, 2.0 x 1.6 mm, 2.5 x 2.0 mm, 3.2 x 2.5 mm, and 5.0 x 3.2 mm ceramic packages, plus HC-49S formats. Use the product table to compare frequency range, package dimensions, load capacitance, operating temperature, and frequency tolerance. Select the model whose frequency, load capacitance, temperature range, and footprint match the target circuit. As a quartz crystal manufacturer and resonator supplier, JWT Crystal provides SMD options for different PCB and frequency requirements. For MCU crystal selection, check frequency and footprint first, then verify load capacitance, frequency-dependent ESR, maximum drive level, operating temperature, and tolerance in the model Datasheet. The standard CQ, CO, CN, CM, CF, and CC series use customized load capacitance; documented drive limits range from 100 µW for CQ1210 and CO1612 to 500 µW for CF3225 and CC5032, while ESR limits vary by model and frequency band.
