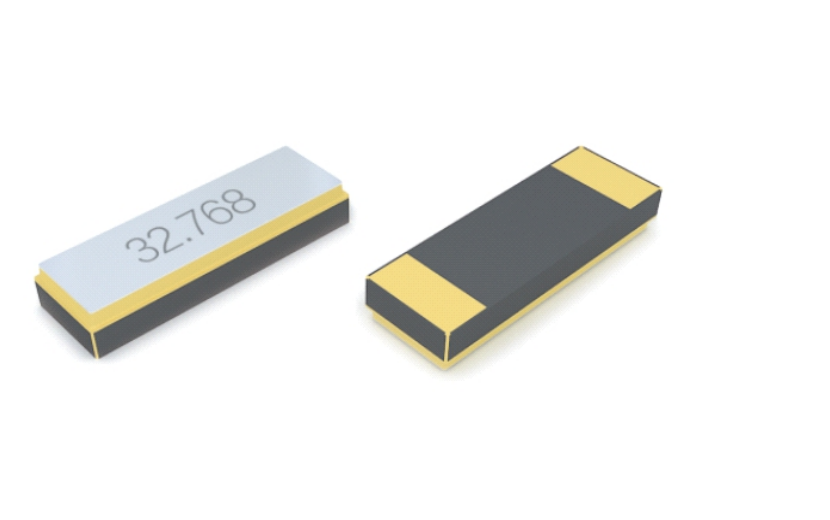

DI2012 2.0 × 1.2 mm 32.768kHz Crystal
DI2012 is a 2.0 × 1.2 mm 32.768kHz crystal in a reliable seam-sealed ceramic package for high-density surface mounting. The datasheet specifies fundamental-mode operation and ±20 ppm frequency tolerance.
Quick Product Answers
What is DI2012?
DI2012 is a 2.0 × 1.2 mm 32.768kHz crystal in a reliable seam-sealed ceramic package for high-density surface mounting. The datasheet specifies fundamental-mode operation and ±20 ppm frequency tolerance.
What are the key specifications of DI2012?
Nominal frequency range: 32.768 kHz; Operating temperature range: -40°C to +85°C.
What applications is DI2012 intended for?
DI2012 is listed for RTC, Smart wearables, Instrumentation, Low-power products.
How should engineers select DI2012?
Select DI2012 only when its documented frequency, package size, operating-temperature range and tolerance or stability match the design. Where applicable, also verify load capacitance, supply voltage and output waveform in the datasheet.
- Model
- DI2012
- Package size
- 2.0 × 1.2 × 0.60 mm max.
- Frequency
- 32.768 kHz
- Oscillation mode
- Fundamental
- Frequency tolerance
- ±20 ppm
- Operating temperature
- -40°C to +85°C
Product Features
Applications
Technical Specifications
| Model | DI2012 |
|---|---|
| Nominal frequency range | 32.768 kHz |
| Oscillation mode | Fundamental |
| Crystal cut | Photolithography |
| Frequency tolerance at 25°C ±3°C | ±20 ppm |
| Operating temperature range | -40°C to +85°C |
| Coefficient of temperature characteristics | (-0.04 ± 0.003) ppm/°C² |
| Storage temperature range | -55°C to +125°C |
| Equivalent series resistance | 80 kΩ |
| Load capacitance | Customized |
| Drive level max. | 0.5 µW |
| Aging at first year | ±3.0 ppm |

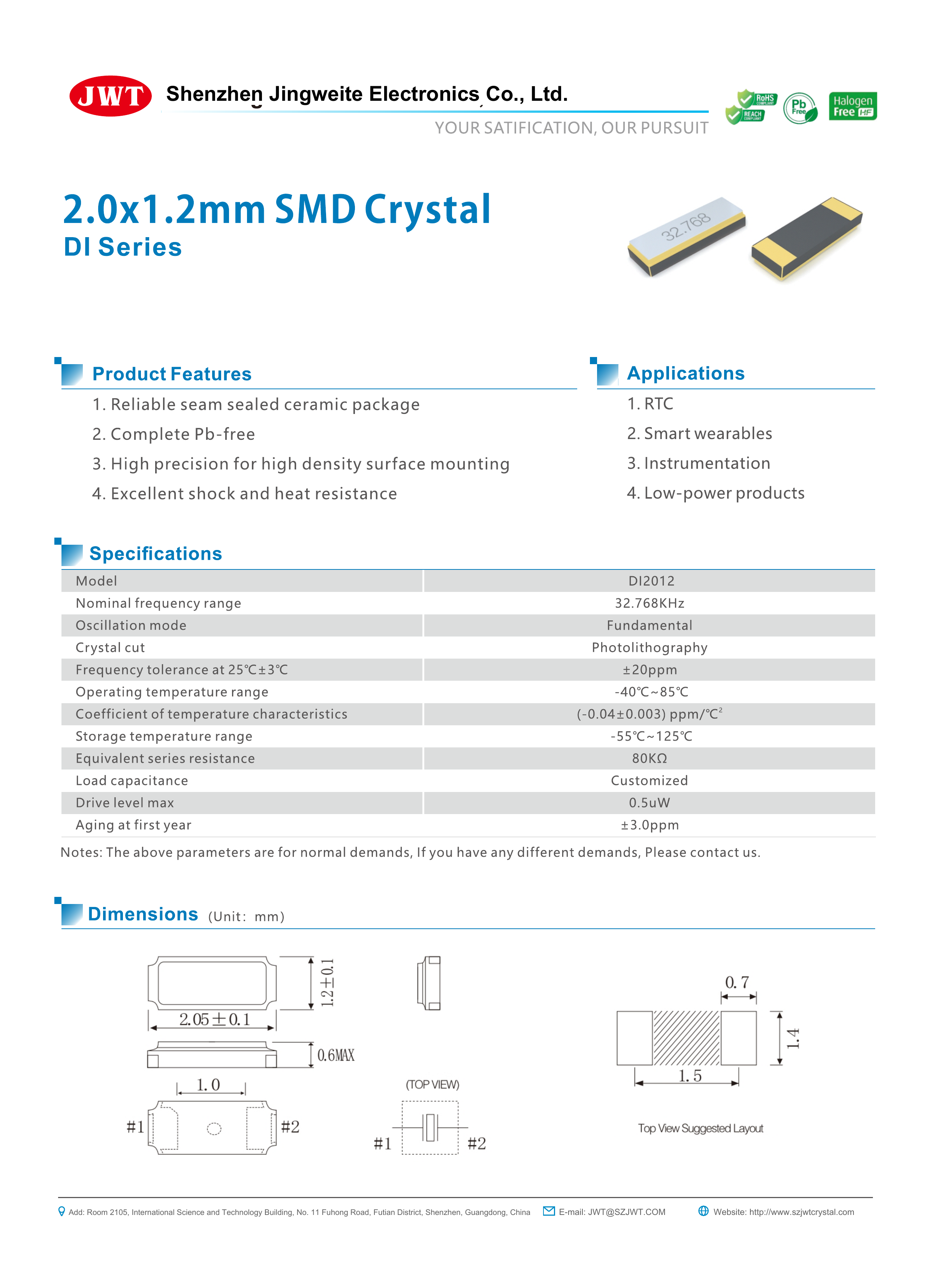

Original PDF Specification Preview
The HTML table above is searchable and mobile-friendly; this image preserves the original product material.
Click the preview to open the original PDF.
