Automotive Electronics
Frequency Control Components for Vehicle Electronics
JWT automotive frequency-control components on this page include a 32.768kHz crystal, passive SMD crystals, and active CMOS crystal oscillators. Use the 32.768kHz crystal for RTC and time-base requirements, an SMD crystal with an external oscillator circuit, or a CMOS crystal oscillator when an integrated clock output is required. Then compare frequency, package size, operating temperature, frequency tolerance, and the documented load-capacitance or output requirements in the product tables and Datasheets.
Automotive Application Areas
Product Selection
Recommended Products

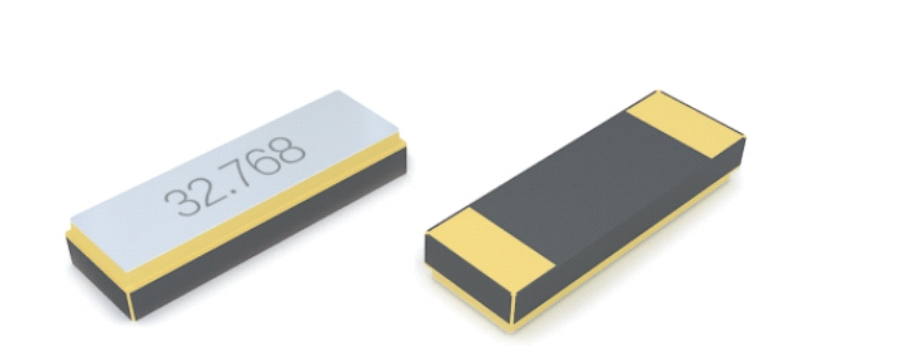

AEC-Q 32.768kHz Crystal
AEC-Q SMD Crystal Oscillator
| Picture | Model | Frequency | Dimension | Operating Temp | Frequency Tolerance | Output | Datasheet |
|---|---|---|---|---|---|---|---|
 | YNC2016 | 0.032768 to 54.000MHz | 2.0 x 1.6mm | -40°C to +85°C -40°C to +105°C -40°C to +125°C | ±10ppm ±20ppm | CMOS | Download |
| YMC2520 | 0.032768 to 156.250MHz | 2.5 x 2.0mm | -40°C to +85°C -40°C to +105°C -40°C to +125°C | ±10ppm ±20ppm | CMOS | Download |
| YFC3225 | 0.032768 to 156.250MHz | 3.2 x 2.5mm | -40°C to +85°C -40°C to +105°C -40°C to +125°C | ±10ppm ±20ppm | CMOS | Download |
AEC-Q SMD Crystal
Product Support
Why JWT for Automotive Applications
The supplied automotive product datasheets cover compact SMD package formats, multiple operating-temperature options and both crystal and CMOS oscillator solutions. Use the tables above to compare the documented model specifications and download the corresponding datasheets.
Industry Requirements & Selection Guide
What timing requirements matter in Automotive Electronics?
Automotive timing designs prioritize wide operating-temperature coverage, stable frequency performance, shock and vibration resistance, and AEC-Q qualification where the vehicle program requires it.
How should engineers select a frequency-control component for Automotive Electronics?
Select by frequency, package size, operating-temperature range and tolerance or stability first; then confirm supply voltage, output type and the exact AEC-Q status in the linked datasheet.
Request a Quote
Discuss frequency, package and operating-temperature requirements with the JWT team.
