CF Series

CF3225 3.2 × 2.5 mm SMD Crystal

CF3225 is a 3.2 × 2.5 mm SMD crystal with high precision, stability and consistency. The datasheet specifies 8.000-54.000 MHz fundamental (AT-cut) operation.

Quick Product Answers

What is CF3225?
CF3225 is a 3.2 × 2.5 mm SMD crystal with high precision, stability and consistency. The datasheet specifies 8.000-54.000 MHz fundamental (AT-cut) operation.

What are the key specifications of CF3225?
Nominal frequency range: 8.000-54.000 MHz; Operating temperature range: -20°C to +70°C / -40°C to +85°C / -40°C to +125°C.

What applications is CF3225 intended for?
CF3225 is listed for Network communication, Traditional household appliances, Security monitoring, Industrial control, Smart Home.

How should engineers select CF3225?
Select CF3225 only when its documented frequency, package size, operating-temperature range and tolerance or stability match the design. Where applicable, also verify load capacitance, supply voltage and output waveform in the datasheet.

Model: CF3225
Package size: 3.2 × 2.5 mm
Frequency range: 8.000-54.000 MHz
Oscillation mode: Fundamental (AT-cut)
Frequency tolerance: ±10 ppm
Operating temperature: -20°C to +70°C / -40°C to +85°C / -40°C to +125°C

Download Datasheet Request a Sample

Product Features

High precision, stability and consistencyProduct feature stated in the original datasheet.

Ultra miniaturizationProduct feature stated in the original datasheet.

ROHS/REACH CompliantProduct feature stated in the original datasheet.

Wide operating temperatureProduct feature stated in the original datasheet.

Applications

01Network communication

02Traditional household appliances

03Security monitoring

04Industrial control

05Smart Home

06PC Digital

Technical Specifications

CF3225 electrical and environmental specifications
Model	CF3225
Nominal frequency range	8.000-54.000 MHz
Oscillation mode	Fundamental (AT-cut)
Frequency tolerance at 25°C ±3°C	±10 ppm
Operating temperature range	-20°C to +70°C / -40°C to +85°C / -40°C to +125°C
Frequency stability over temperature (Ref. to 25°C)	±10 ppm / ±20 ppm / ±30 ppm
Storage temperature range	-55°C to +125°C
Load capacitance	Customized
Shunt capacitance max.	5.0 pF
Drive level max.	500 µW
Aging at first year	±3.0 ppm

Equivalent Series Resistance

8.000-9.839 MHz250-120 Ω

9.840-11.999 MHz120-70 Ω

12.000-15.999 MHz70-50 Ω

16.000-18.999 MHz50-40 Ω

19.000-54.000 MHz40-20 Ω

Original PDF Specification Preview

The HTML table above is searchable and mobile-friendly; this image preserves the original product material.

Download PDF

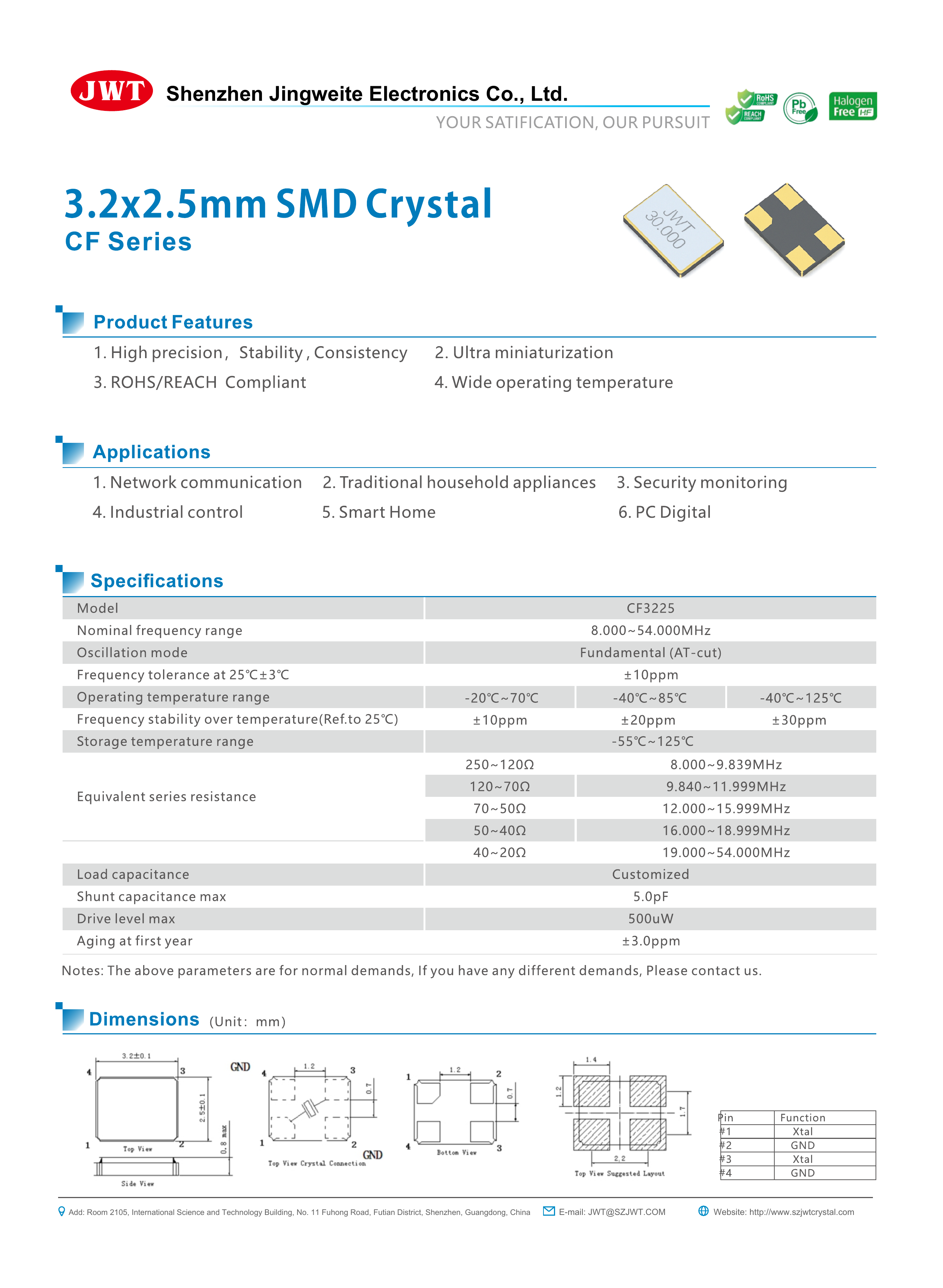

High-resolution original CF3225 PDF specification preview
