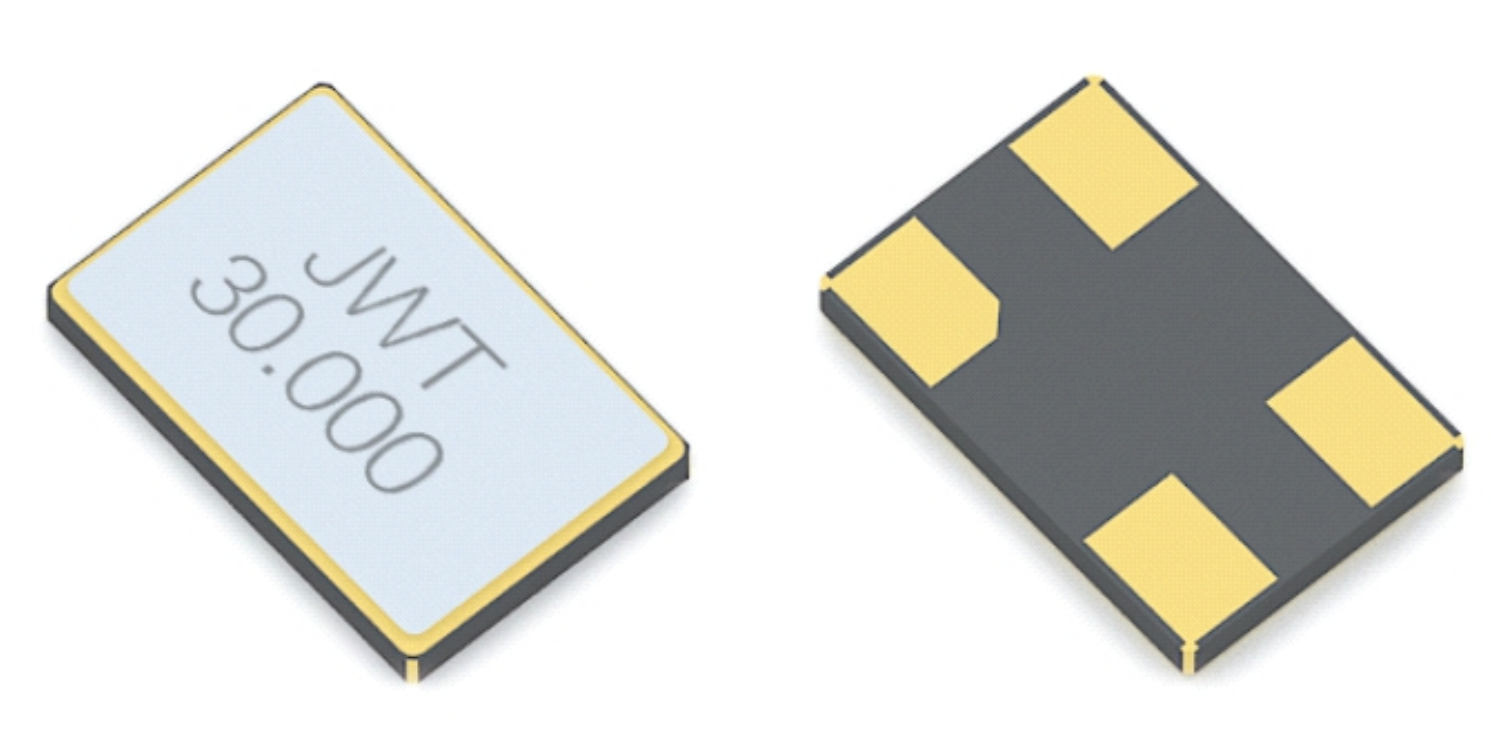

CQ1210 1.2 × 1.0 mm SMD Crystal
CQ1210 is a 1.2 × 1.0 mm SMD crystal in a reliable seam-sealed ceramic package. The datasheet specifies high precision, high reliability and 26.000–96.000 MHz fundamental-mode operation.
Quick Product Answers
What is CQ1210?
CQ1210 is a 1.2 × 1.0 mm SMD crystal in a reliable seam-sealed ceramic package. The datasheet specifies high precision, high reliability and 26.000–96.000 MHz fundamental-mode operation.
What are the key specifications of CQ1210?
Nominal frequency range: 26.000–96.000 MHz; Operating temperature range: -20°C–+70°C / -40°C–+85°C.
What applications is CQ1210 intended for?
CQ1210 is listed for IoT, NFC, Wearables, Medical.
How should engineers select CQ1210?
Select CQ1210 only when its documented frequency, package size, operating-temperature range and tolerance or stability match the design. Where applicable, also verify load capacitance, supply voltage and output waveform in the datasheet.
- Model
- CQ1210
- Package size
- 1.2 × 1.0 × 0.28 mm
- Frequency range
- 26.000–96.000 MHz
- Oscillation mode
- Fundamental
- Frequency tolerance
- ±10 ppm
- Operating temperature
- -20°C–+70°C / -40°C–+85°C
Product Features
Applications
Technical Specifications
| Model | CQ1210 |
|---|---|
| Nominal frequency range | 26.000–96.000 MHz |
| Oscillation mode | Fundamental |
| Frequency tolerance at 25°C ±3°C | ±10 ppm |
| Operating temperature range | -20°C–+70°C / -40°C–+85°C |
| Frequency stability over temperature (Ref. to 25°C) | ±10 ppm / ±20 ppm |
| Storage temperature range | -40°C–+85°C |
| Load capacitance | Customized |
| Shunt capacitance max. | 3.0 pF |
| Drive level max. | 100 μW |
| Aging at first year | ±3.0 ppm |
Equivalent Series Resistance

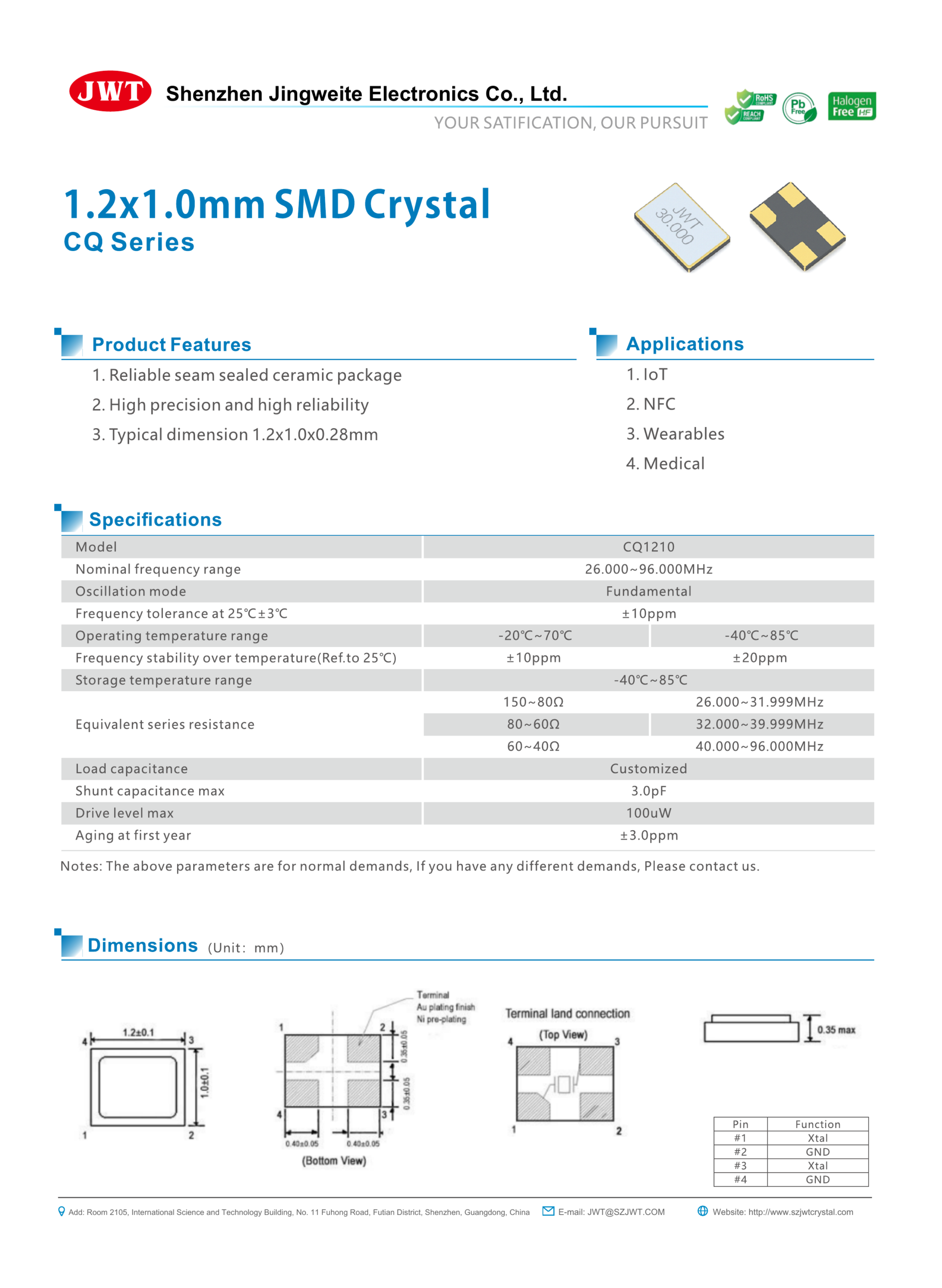

Original PDF Specification Preview
The HTML table above is searchable and mobile-friendly; this image preserves the original product material.
Click the preview to open the original PDF.
