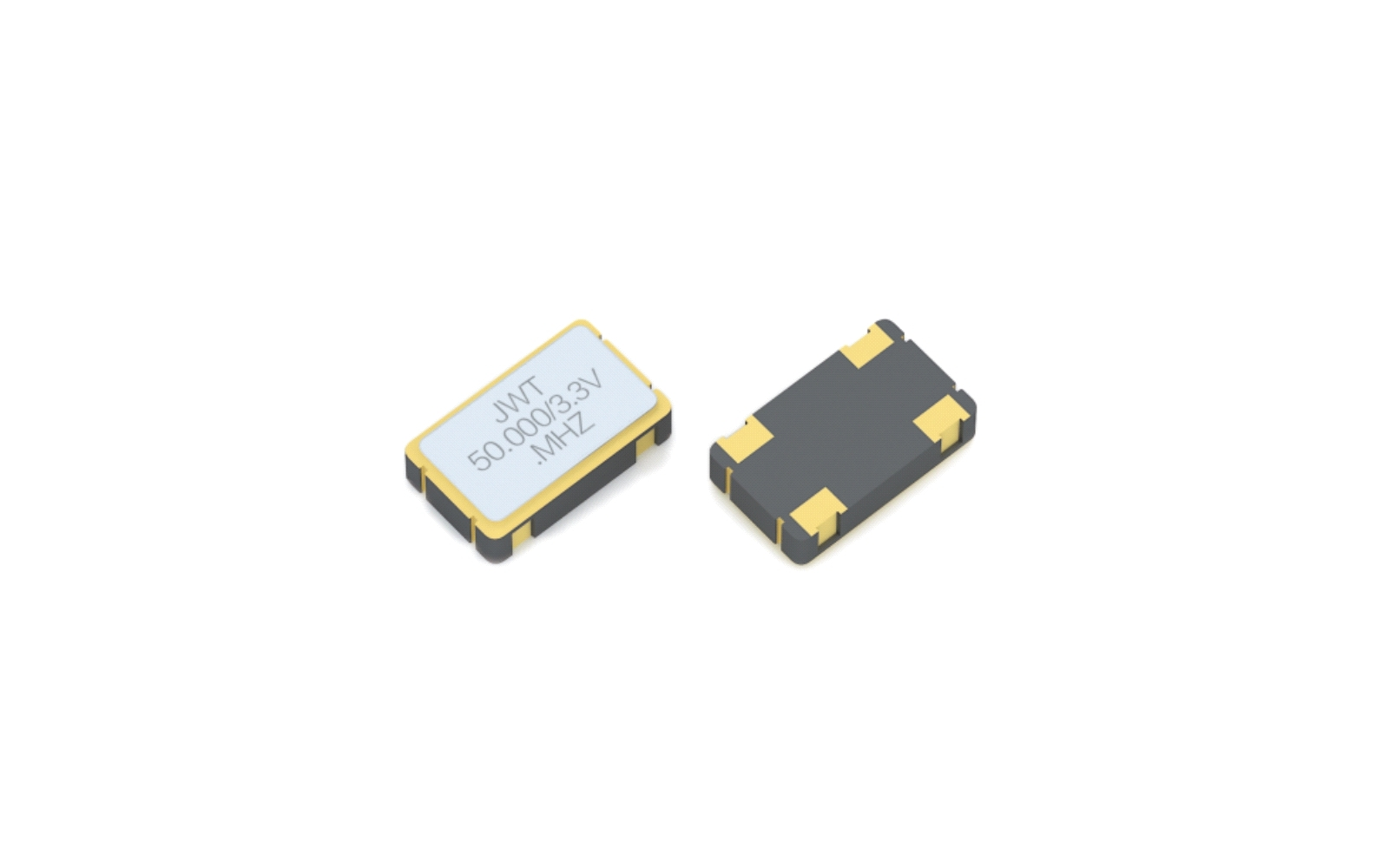

YN2016 2.0 × 1.6 mm SMD Crystal Oscillator
YN2016 is a 2.0 × 1.6 mm SMD oscillator in the YN Series. Its datasheet specifies a wide temperature range, a wide frequency range, and an ultra-small SMD seam-sealed crystal oscillator design.
Quick Product Answers
What is YN2016?
YN2016 is a 2.0 × 1.6 mm SMD oscillator in the YN Series. Its datasheet specifies a wide temperature range, a wide frequency range, and an ultra-small SMD seam-sealed crystal oscillator design.
What are the key specifications of YN2016?
Frequency range: 0.032768–54.000 MHz; Operating temperature range: -40°C–+85°C / -40°C–+105°C / -40°C–+125°C; Output waveform: CMOS.
What applications is YN2016 intended for?
YN2016 is listed for Industrial control, Intelligent IoT, Smartphone, Tablet computers, Notebook PC, PC card.
How should engineers select YN2016?
Select YN2016 only when its documented frequency, package size, operating-temperature range and tolerance or stability match the design. Where applicable, also verify load capacitance, supply voltage and output waveform in the datasheet.
- Model
- YN2016
- Package size
- 2.0 × 1.6 mm
- Frequency range
- 0.032768–54.000 MHz
- Oscillation mode
- Fundamental
- Supply voltage (VDD)
- 0.9–2.0 V / 1.35–5.5 V
- Operating temperature
- -40°C–+85°C / -40°C–+105°C / -40°C–+125°C
Product Features
Applications
Technical Specifications
| Model | YN2016 |
|---|---|
| Supply voltage (VDD) | 0.9–2.0 V / 1.35–5.5 V |
| Frequency range | 0.032768–54.000 MHz |
| Oscillation mode | Fundamental |
| Frequency tolerance at 25°C ±3°C | ±10 ppm / ±20 ppm |
| Operating temperature range | -40°C–+85°C / -40°C–+105°C / -40°C–+125°C |
| Frequency stability over temperature (Ref. to 25°C) | ±20 ppm / ±30 ppm / ±50 ppm |
| Storage temperature range | -55°C–+125°C |
| Duty cycle | 45–55% |
| Current consumption | 0.5 mA max. at 32.768 kHz / 10 mA max. at 1–54.000 MHz |
| Output waveform | CMOS |
| Start-up time | 5.0 ms max. |
| Rise/Fall time (10%–90% VDD level) | 5.0 ns max. |
| Tri-State | Output enable: 70% VDD / Output disable: 30% VDD |
| High output voltage | 0.9 VDD |
| Low output voltage | 0.1 VDD |
| Output load | 15 pF / 30 pF / 50 pF |
| Aging at first year | ±3.0 ppm |

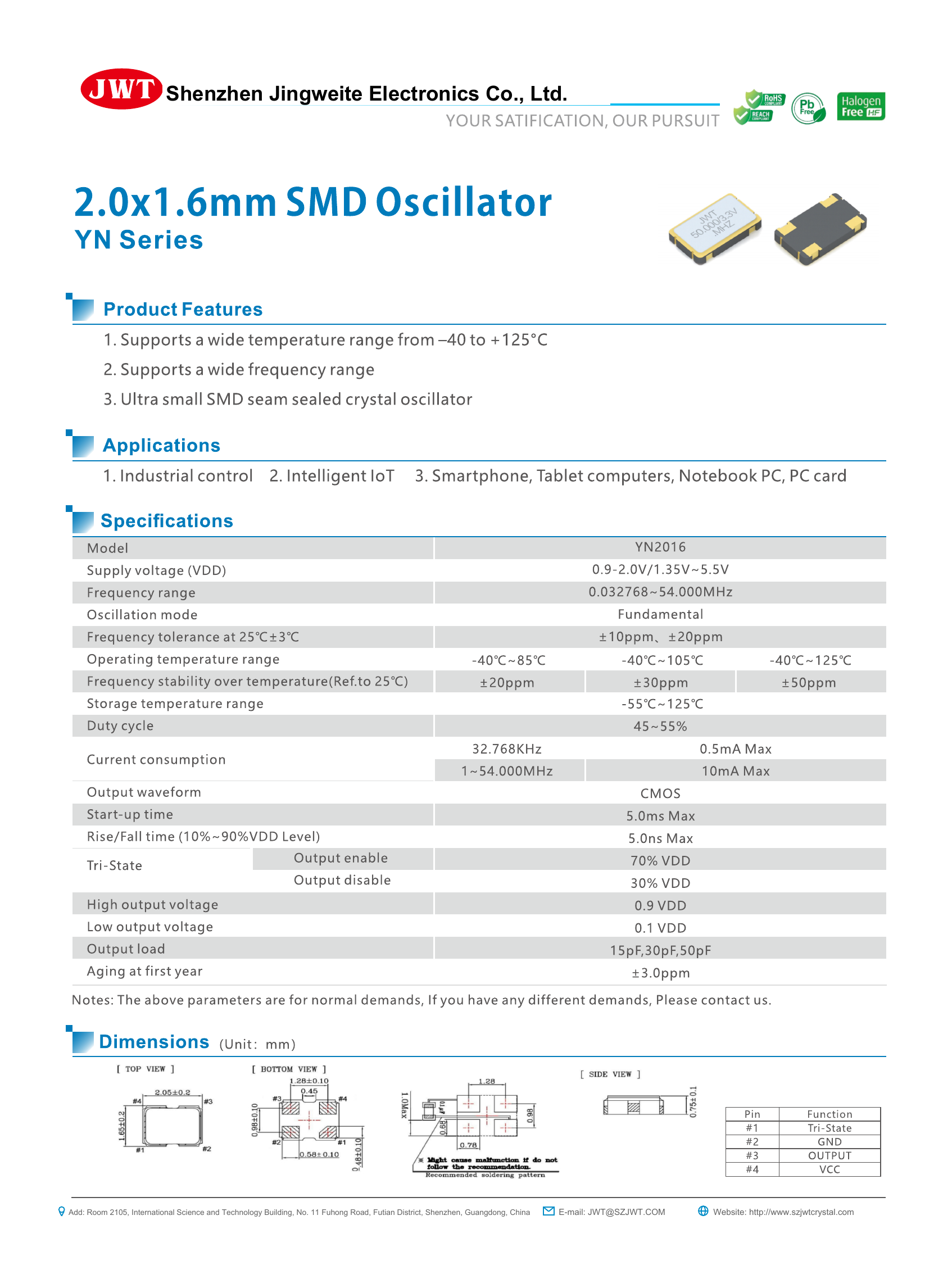

Original PDF Specification Preview
The HTML table above is searchable and mobile-friendly; this image preserves the original product material.
Click the preview to open the original PDF.
