SMD7015 7.0 × 1.5 mm 32.768kHz Crystal
SMD7015 is a 7.0 × 1.5 mm 32.768kHz crystal in a plastic surface-mount package. The datasheet specifies tight tolerance and stability, tape-and-reel packaging and ±20 ppm frequency tolerance.
Quick Product Answers
What is SMD7015?
SMD7015 is a 7.0 × 1.5 mm 32.768kHz crystal in a plastic surface-mount package. The datasheet specifies tight tolerance and stability, tape-and-reel packaging and ±20 ppm frequency tolerance.
What are the key specifications of SMD7015?
Rated frequency: 32.768 kHz; Operating temperature range: -40°C to +125°C.
What applications is SMD7015 intended for?
SMD7015 is listed for Automotive Electronics, Consumer Electronics, Industrial Electronics, Communication Equipment, IoT & Smart Devices.
How should engineers select SMD7015?
Select SMD7015 only when its documented frequency, package size, operating-temperature range and tolerance or stability match the design. Where applicable, also verify load capacitance, supply voltage and output waveform in the datasheet.
- Model
- SMD7015
- Package size
- 7.0 × 1.5 × 1.4 mm
- Frequency
- 32.768 kHz
- Package type
- Plastic SMD
- Frequency tolerance
- ±20 ppm
- Operating temperature
- -40°C to +125°C
Product Features
Applications
Technical Specifications
| Type | SMD 7.0 × 1.5 |
|---|---|
| Rated frequency | 32.768 kHz |
| Frequency tolerance at 25°C | ±20 ppm (Type) |
| Operating temperature range | -40°C to +125°C |
| Storage temperature range | -55°C to +125°C |
| Inflection point temperature | +25°C ±5°C |
| Load capacitance | 7 pF / 9 pF / 12.5 pF |
| Drive level | 0.5 µW; 1.0 µW max. |
| Frequency temperature coefficient | -0.04 × 10⁻⁶/°C² max. |
| Equivalent series resistance | 65 kΩ max. |
| Equivalent series capacitance | 1.9 fF typ. |
| Shunt capacitance | 0.8 pF typ. |
| Aging | ±3 × 10⁻⁶/year max. |

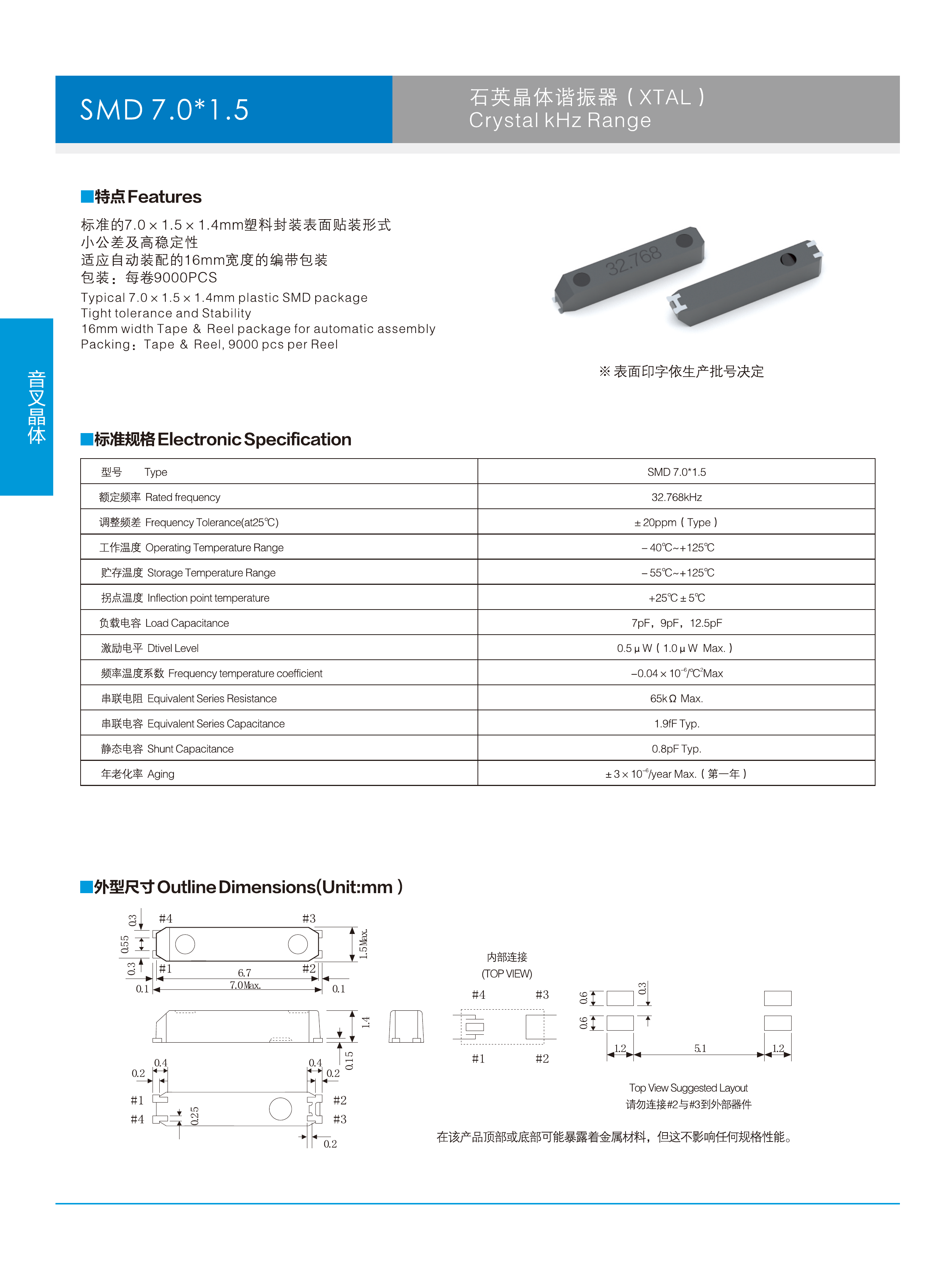

Original PDF Specification Preview
