| Picture | Model | Frequency | Dimension | Load Cap | Operating Temp | Frequency Tolerance | Datasheet |
|---|---|---|---|---|---|---|---|
 | DJ1610 | 32.768kHz | 1.6 x 1.0mm | Customized | -40°C to +85°C | ±20ppm | Download |
| DI2012 | 32.768kHz | 2.0 x 1.2mm | Customized | -40°C to +85°C | ±20ppm | Download |
| TF3215 | 32.768kHz | 3.2 x 1.5mm | Customized | -40°C to +85°C | ±20ppm | Download |
 | SMD7015 | 32.768kHz | 7.0 x 1.5mm | Customized | ±20ppm | Download |
| Picture | Model | Voltage | Frequency | Dimension | Operating Temp | Frequency Tolerance | Output | Datasheet |
|---|---|---|---|---|---|---|---|---|
 | WO1612 | 1.68 to 3.63V | 10.000 to 96.000MHz | 1.6 x 1.2mm | -40°C to +85°C -40°C to +105°C -40°C to +125°C | ±0.5ppm ±1.0ppm | Clipped sine wave CMOS / LVCMOS | Download |
| WN2016 | 1.68 to 3.63V | 10.000 to 54.000MHz | 2.0 x 1.6mm | -40°C to +85°C -40°C to +105°C -40°C to +125°C | ±0.5ppm ±1.0ppm | Clipped sine wave CMOS / LVCMOS | Download |
| WM2520 | 1.68 to 3.63V | 10.000 to 54.000MHz | 2.5 x 2.0mm | -40°C to +85°C -40°C to +105°C -40°C to +125°C | ±0.5ppm ±1.0ppm | Clipped sine wave CMOS / LVCMOS | Download |
| WF3225 | 1.68 to 3.63V | 10.000 to 54.000MHz | 3.2 x 2.5mm | -40°C to +85°C -40°C to +105°C -40°C to +125°C | ±0.5ppm ±1.0ppm | Clipped sine wave CMOS / LVCMOS | Download |

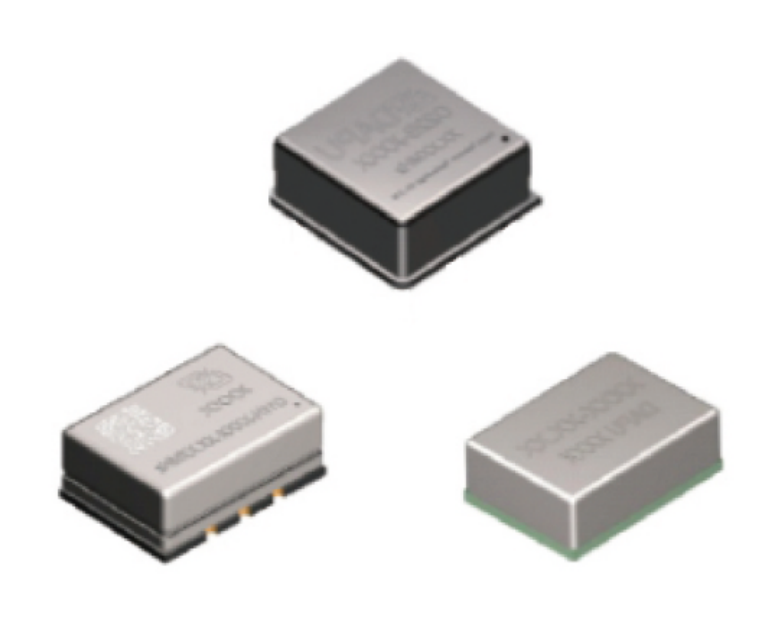

| Picture | Model | Voltage | Frequency | Dimension | Operating Temp | Frequency Stability | Datasheet |
|---|---|---|---|---|---|---|---|
 | 5V / 12V | 80 to 120MHz | 36 x 27 x 12.7mm | -40°C to +85°C | ±5 ppb max. | Download | |
| 12V | 5 to 10MHz | 25 x 25 x 12.7mm | -40°C to +85°C | ±0.5 ppb max. | Download | |
| 12V | 5 to 10MHz | 36 x 27 x 12.7mm | -40°C to +85°C | ±0.5 ppb max. | Download | |
| 12V | 5 to 10MHz | 50 x 50 x 15mm | -40°C to +85°C | ±0.5 ppb max. | Download | |
| 5V / 12V | 80 to 120MHz | 25 x 25 x 12.7mm | -40°C to +85°C | ±5 ppb max. | Download |
Industry Requirements & Selection Guide
What timing requirements matter in Navigation & Positioning?
Navigation and positioning systems require stable reference timing, controlled temperature behavior and, where applicable, suitable phase-noise or jitter performance for GNSS signal processing.
How should engineers select a frequency-control component for Navigation & Positioning?
Select by frequency, stability, operating temperature and package constraints; for oscillators, also verify supply voltage, output waveform, phase noise or jitter in the datasheet.
