YMC2520 2.5 × 2.0 mm SMD Crystal Oscillator
YMC2520 is a 2.5 × 2.0 mm SMD oscillator in the YMC Series. The datasheet specifies supports a wide temperature range from -40 to +125°C, supports a wide frequency range, and conforms to AEC-Q100/200.
Quick Product Answers
What is YMC2520?
YMC2520 is a 2.5 × 2.0 mm SMD oscillator in the YMC Series. The datasheet specifies supports a wide temperature range from -40 to +125°C, supports a wide frequency range, and conforms to AEC-Q100/200.
What are the key specifications of YMC2520?
Frequency range: 0.032768–156.250 MHz; Operating temperature range: -40°C–+85°C / -40°C–+105°C / -40°C–+125°C; Output waveform: CMOS.
What applications is YMC2520 intended for?
YMC2520 is listed for Smartphone, Tablet computers, Notebook PC, PC card, Audio equipment and wireless module, Automotive (BMS, TPMS, V2X, T-BOX, RADAR).
How should engineers select YMC2520?
Select YMC2520 only when its documented frequency, package size, operating-temperature range and tolerance or stability match the design. Where applicable, also verify load capacitance, supply voltage and output waveform in the datasheet.
- Model
- YMC2520
- Package size
- 2.5 × 2.0 mm
- Frequency range
- 0.032768–156.250 MHz
- Oscillation mode
- Fundamental or 3rd overtone
- Supply voltage (VDD)
- 0.9–2.0 V / 1.35–5.5 V
- Operating temperature
- -40°C–+85°C / -40°C–+105°C / -40°C–+125°C
Product Features
Applications
Technical Specifications
| Model | YMC2520 |
|---|---|
| Supply voltage (VDD) | 0.9–2.0 V / 1.35–5.5 V |
| Frequency range | 0.032768–156.250 MHz |
| Oscillation mode | Fundamental or 3rd overtone |
| Frequency tolerance at 25°C ±3°C | ±10 ppm / ±20 ppm |
| Operating temperature range | -40°C–+85°C / -40°C–+105°C / -40°C–+125°C |
| Frequency stability over temperature (Ref. to 25°C) | ±20 ppm / ±30 ppm / ±50 ppm |
| Storage temperature range | -55°C–+125°C |
| Duty cycle | 45–55% |
| Current consumption | 0.5 mA max. at 32.768 kHz / 10 mA max. at 1–54.000 MHz / 40 mA max. at 3rd overtone |
| Output waveform | CMOS |
| Start-up time | 5.0 ms max. |
| Rise/Fall time (10%–90% VDD level) | 5.0 ns max. |
| Tri-State | Output enable: 70% VDD / Output disable: 30% VDD |
| High output voltage | 0.9 VDD |
| Low output voltage | 0.1 VDD |
| Output load | 15 pF / 30 pF / 50 pF |
| Aging at first year | ±3.0 ppm |

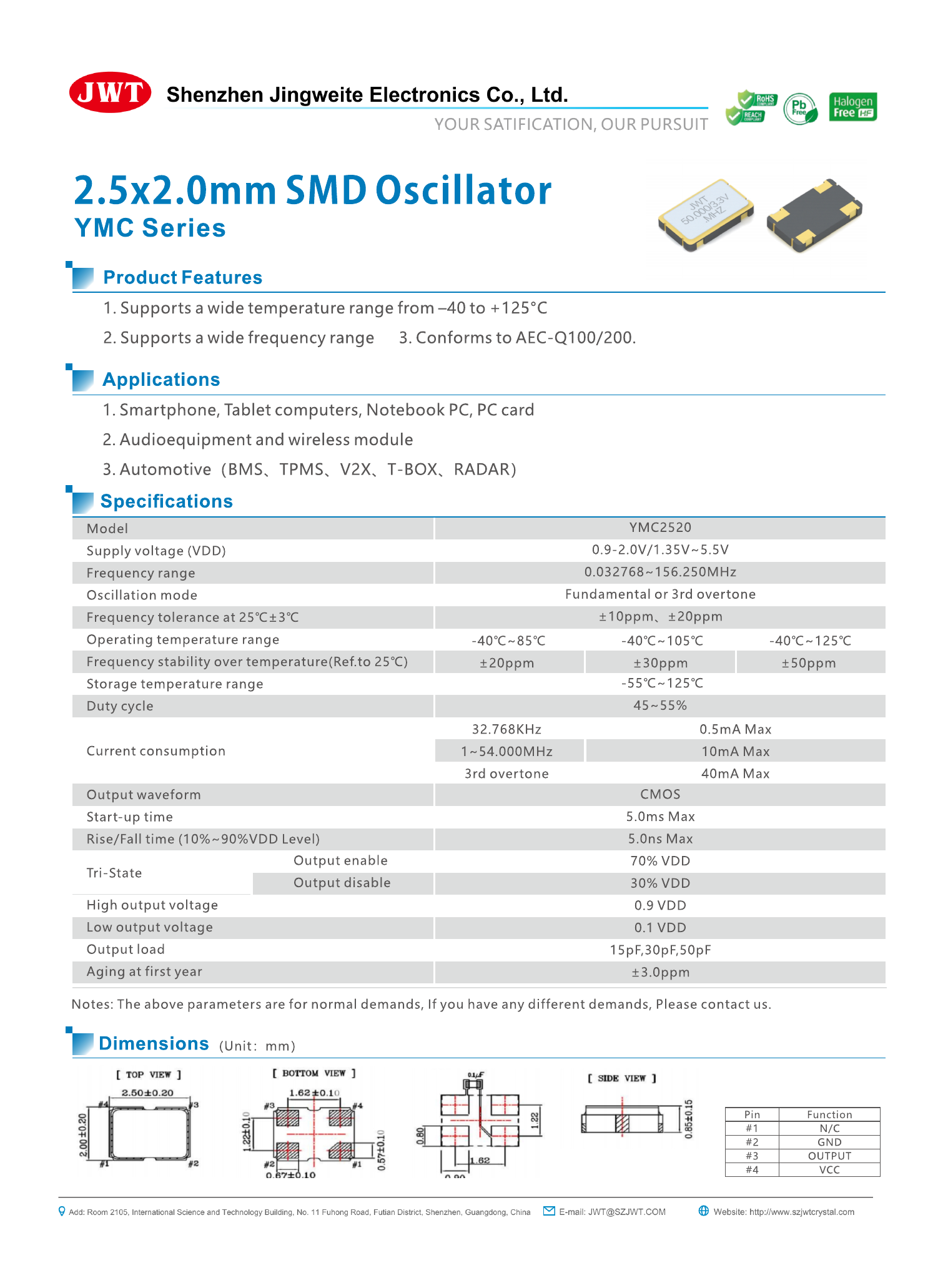

Original PDF Specification Preview
