Differential Oscillator

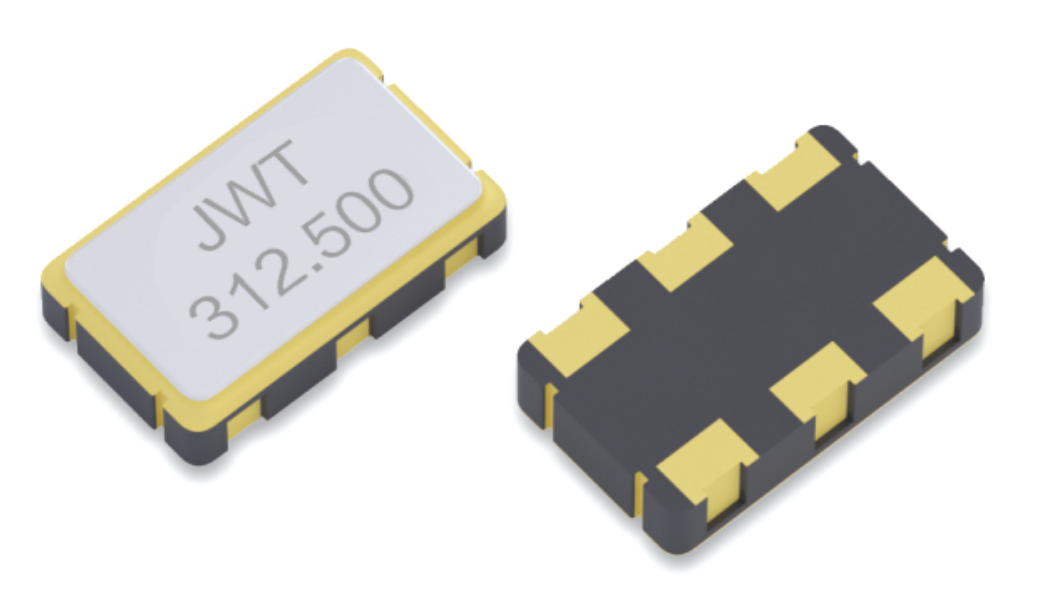

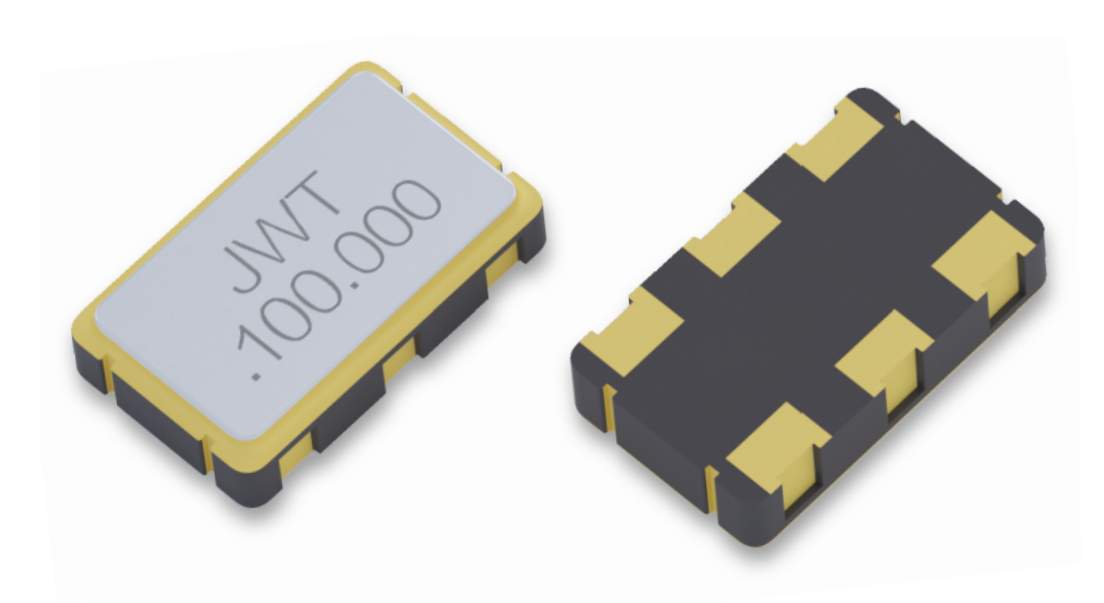

JWT Crystal's Differential Oscillators are active differential clock sources with LVDS, LVPECL, and HCSL output options. DYN2016, DYM2520, DYF3225, DYA5032, and DYA7050 cover 20.000-156.250 MHz, while YN6312M500332015P is listed at 312.500 MHz. Available package sizes range from 2.0 x 1.6 mm to 7.0 x 5.0 mm, with listed supply ranges of 1.71-1.89 V or 2.375-3.63 V, operating temperature of -40°C to +85°C, and ±20 ppm frequency tolerance. Select by output logic, supply voltage, frequency, package size, and tolerance. LVDS, LVPECL, and HCSL are the three documented differential output-logic options across the listed model range. Select the output required by the receiving device, then confirm the corresponding supply voltage, frequency, package size, operating temperature, and interface requirements in the model Datasheet; the output options should not be selected by frequency alone.
